The function and design are fully renewaled, contributing to the introduction of NC with high mobility.
Basic machine for the introduction of NC with stable accuracy and cost performance.
| Capacity | Swing over bed | 360mm |
| Spindle | Spindle nose | EDA-10 |
| Change of speed･Speed | Step-less S4 digits direct command･Max.4,000min-1 | |
| Slide | Travel | X 200mm |
| Z 150mm | ||
| Rapid traverse | X 12m/min | |
| Z 12m/min | ||
| Motor | 1.5kw(Inverter) | |
| NC contril unit | FANUC 0i-TF | |
Passing the standard of the 21st century.
New style of ultra compact CNC lathe.
| Item | NUCBOY-8EX | NUCBOY-8EXP | |
| Capacity | Swing over bed | 270mm | |
| Collet chuck | Type | EDA-8 | |
| Size of collet | Max.20mm | ||
| Spindle | Change of speed | Step-less S4 digits direct command | Step-less S4 digits direct command |
| Speed | Max.4,000min-1 | Max.8,000min-1 | |
| Slide | Travel | X 230mm | |
| Z 200mm | |||
| Rapid traverse | X 15m/min | ||
| Z 15m/min | |||
| Motor | 1.5kw-4P (Inverter) |
2.2/1.5kw (AC Spindle motor) |
|
| NC contril unit | FANUC 0i-TF | ||
Most evolved style.
Most advanced CNC lathe, EGURO, oriented in linear turret lathe, developed with new viewpoints.
| Ite | NUCLET-10EX | NUCLET-EXP | |
| Capacity | Swing over bed | 350mm | |
| Collet chuck | Type | EDA-10 | |
| Size of collet | Max.25.5mm | ||
| Spindle | Change of speed | Step-less S4 digits direct command | Step-less S5 digits direct command |
| Speed | Max.5,000min-1 | Max.8,000min-1 | |
| Slide | Travel | X 260mm | |
| Z 250mm | |||
| Rapid traverse | X 15m/min | ||
| Z 15m/min | |||
| Motor | 2.2kw | 5.5kw | |
| NC contril unit | FANUC 0i-TF | ||
Challenge for highly accurate machining and energy saving.
Soft for spindle motor energy saving(Patent pending).
Adoption of 60°V-V guides for Z axis slide
Cooling system for the bed and the slides are prepared as option.
| Capacity | Swing over bed | 350mm | |
| Collet chuck | Type | φ100 Flat type | |
| Type of collet | EDA-10 | ||
| Spindle | Change of speed･Speed | Step-less S4 digits direct command･Max.5,000min-1 | |
| Slide | Travel | X 260mm | |
| Z 250mm | |||
| Rapid traverse | X 15m/min | ||
| Z 15m/min | |||
| Motor | 5.5kw (Built-in motor) |
||
| NC contril unit | FANUC 0i-TF | ||
CNC lathe to meet various kinds of purposes in high accuracy,chucker or bar works and complex machining as well.
| Capacity | Swing over bed | 350mm |
| Collet chuck | Type | EDA-10 |
| Size of collet | 25.5mm | |
| Spindle | Change of speed･Speed | Step-less S4 digits direct command･Max.5,000min-1 |
| Slide | Travel | X 420mm |
| Z 390mm | ||
| Rapid traverse | X 15m/min | |
| Z 15m/min | ||
| Motor | 3.7kw | |
| NC contril unit | FANUC 0i-TF | |
The highest ranked machine of "NUC-Series" gang tooling precision small lathes.
| Capacity | Swing over bed | 350mm |
| Collet chuck | Type | φ100 Flat type |
| Type of collet | EDA-10 | |
| Spindle | Change of speed･Speed | Step-less S4 digits direct command･Max.5,000min-1 |
| Slide | Travel | X 450mm |
| Z 400mm | ||
| Rapid traverse | X 15m/min | |
| Z 15m/min | ||
| Motor | 5.5kw | |
| NC contril unit | FANUC 0i-TF | |

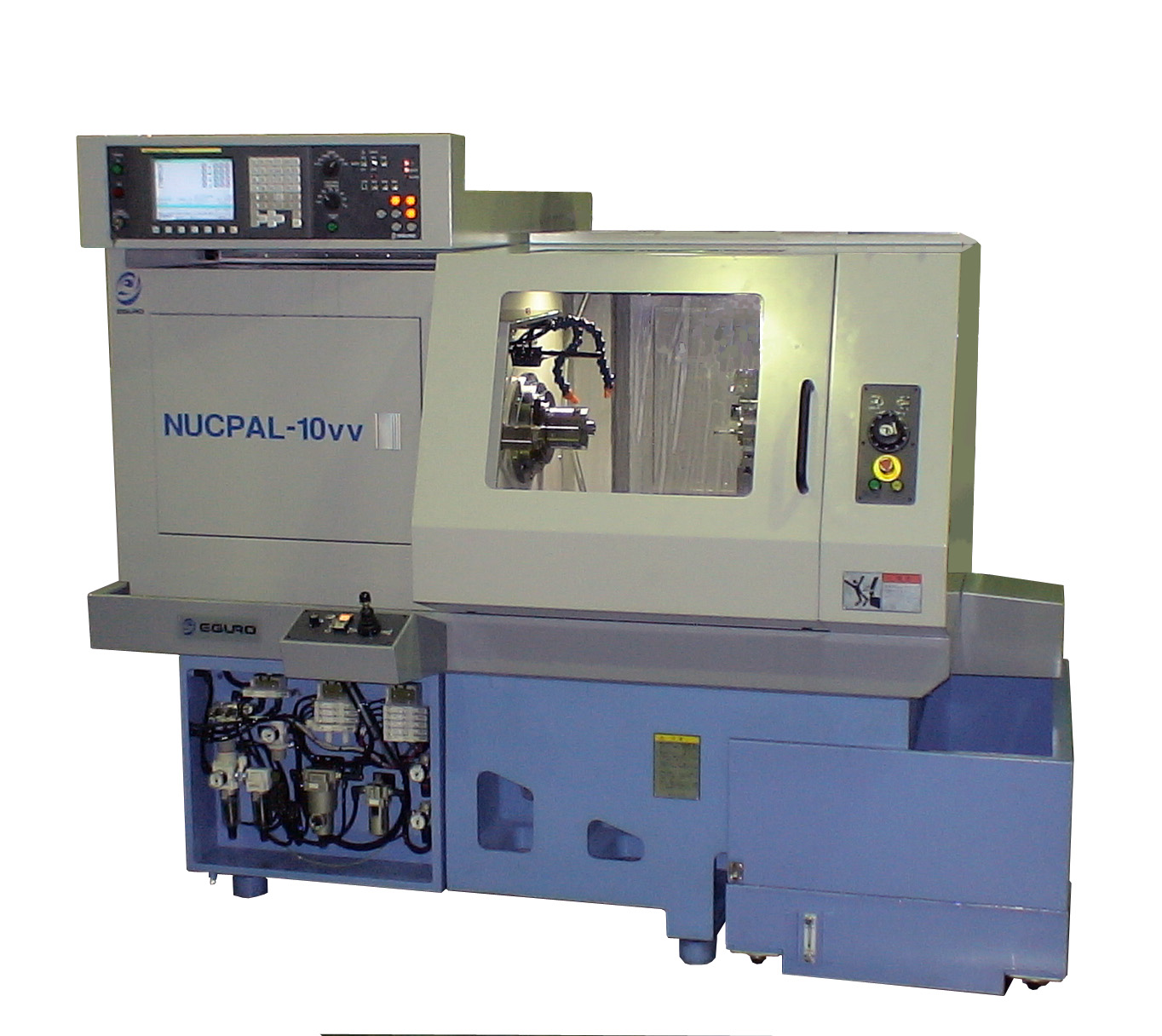

Gang tooling CNC lathe with double V construction for Z axis to achieve high accuracy.
| Capacity | Swing over bed | 350mm | |
| Collet chuck | Type | EDA-10 | |
| Size of collet | 25.5mm | ||
| Spindle | Change of speed･Speed | Step-less S4 digits direct command･Max.5,000min-1 | |
| Slide | Travel | X 420mm | |
| Z 390mm | |||
| Rapid traverse | X 15m/min | ||
| Z 15m/min | |||
| Motor | 7.5kw | ||
| NC contril unit | FANUC 0i-TF | ||
