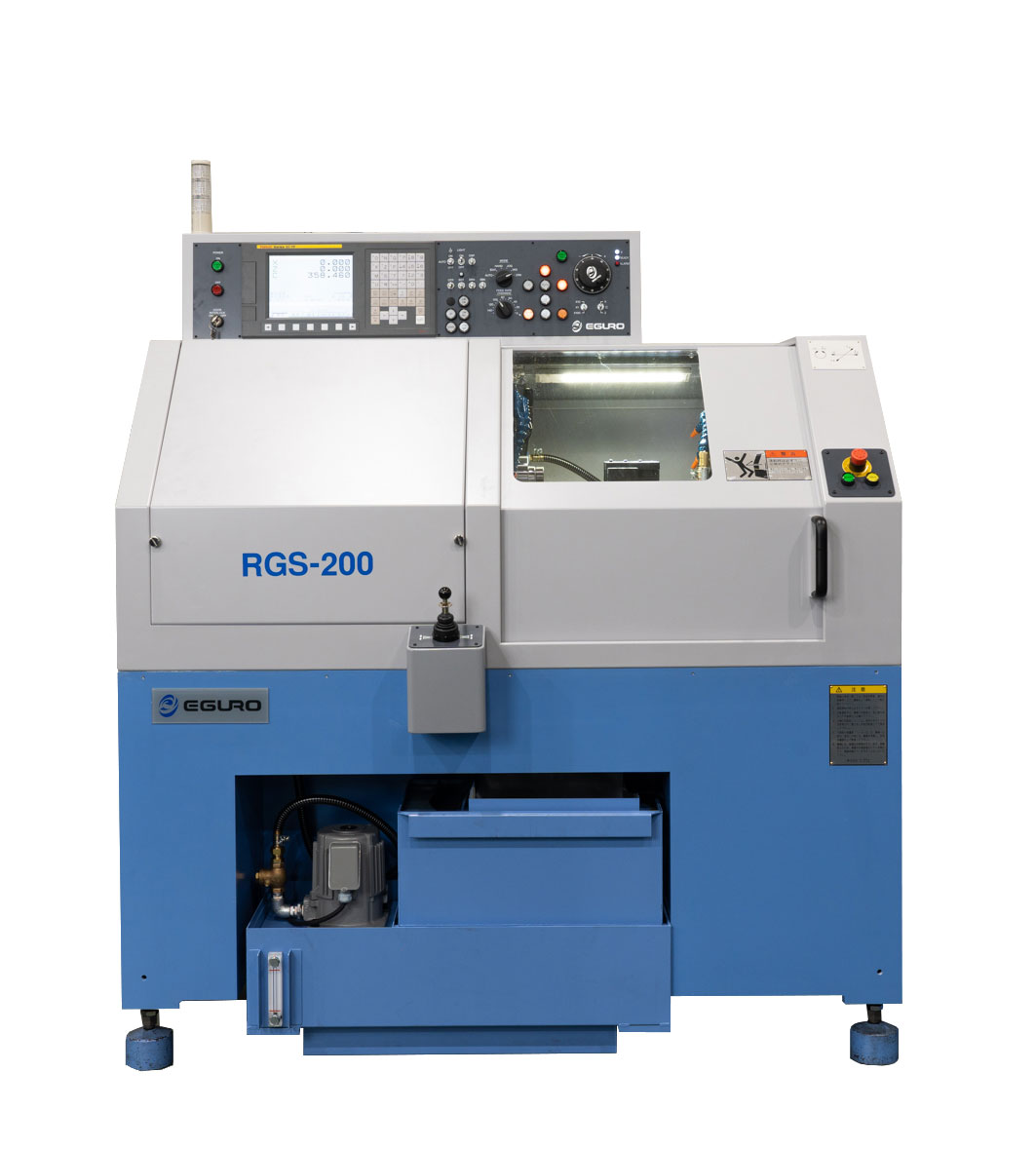

RGS-200Knurling machine
products
RGS-200
Performs both high-quality knurling and turning
Capable of a wide range of knurling processes
- Straight/flat, diamond/crossed, ring inner diameter slotted grooves, spur gears, outer diameter mountain/pyramid patterns
Performs turning with high-quality results
- Delivers high-quality results different from thread rolling

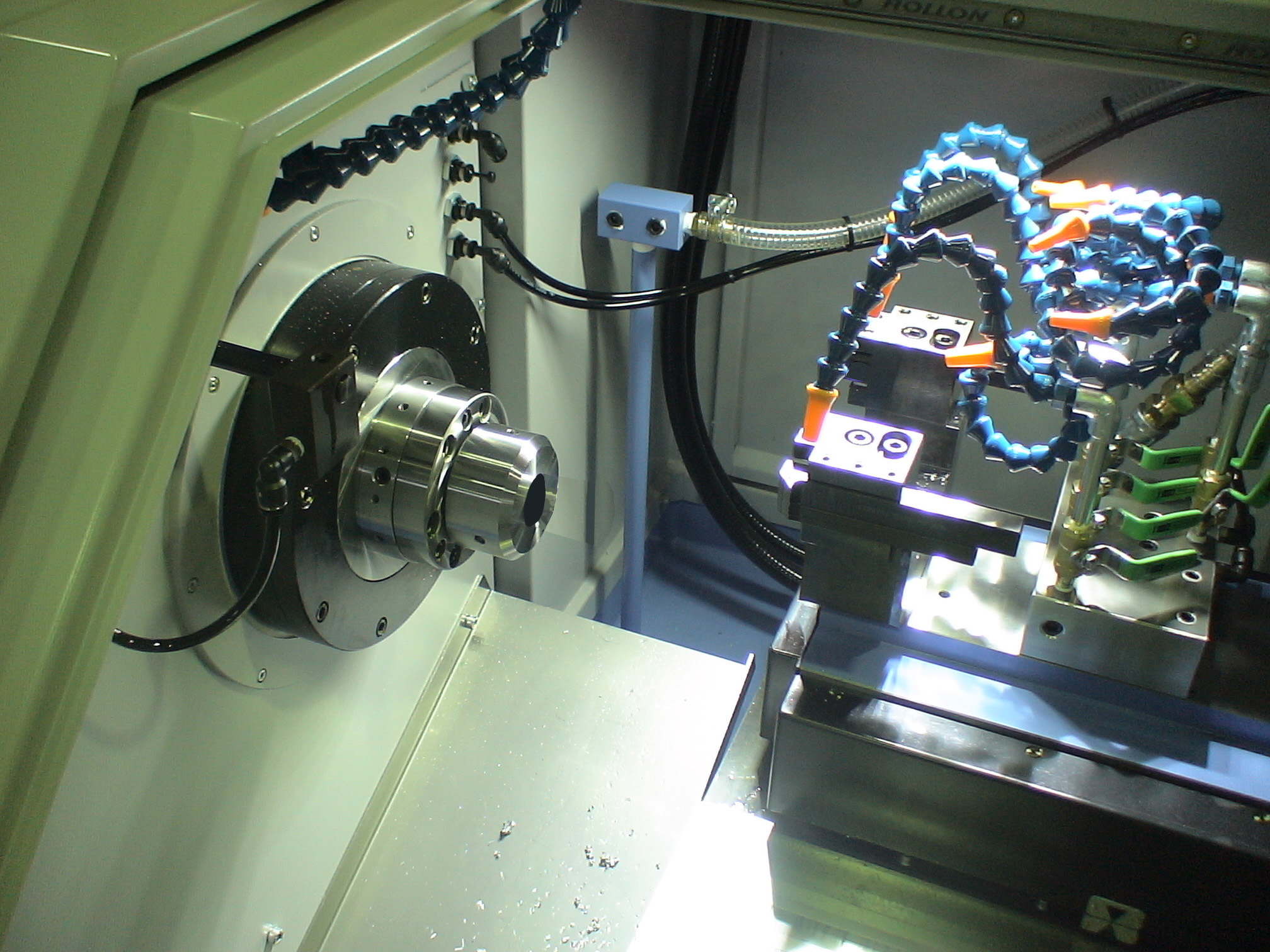

Single-chuck machining with NC
- Capable of turning and knurling processes with single-chucking and also handles burr removal and processing of overhang grooves.
For more information or inquiries about this product, please contact us here.
| Category | RGS-200 | Unit | ||||
|---|---|---|---|---|---|---|
| Capacity | Maximum machining range (diameter × length) | Φ100x150 | mm | |||
| Maximum length for knurling | 75 | mm | ||||
| Spindle | Turning | Rotation speed | Max3,000 | min-1 | ||
| C-axis | Rapid traverse rate | 30,000 | deg/min | |||
| Maximum cutting feed speed | 30,000 | deg/min | ||||
| Minimum indexing angle | 0.001 | deg | ||||
| Spindle nose | EDA-10 (No. 10 collet adapter) | |||||
| Collet diameter | MaxΦ25.5 | mm | ||||
| Toolpost | Type | Gang-type | ||||
| X-axis | Travel | 300 | mm | |||
| Rapid traverse rate | 12 | m/min | ||||
| Maximum cutting feed speed | 5,000 | mm/min | ||||
| Z-axis | Travel | 150 | mm | |||
| Rapid traverse rate | 30 | m/min | ||||
| Maximum cutting feed speed | 15,000 | mm/min | ||||
| Motor output | Spindle | 11 | KW | |||
| X-axis | 1 | KW | ||||
| Z-axis | 1.2/2.1 (continuous/maximum) | KW | ||||
| Power supply | 21 | KVA | ||||
| Main unit specifications | Unit dimensions (width/depth/height) | 1,400/1,060/1,480 | mm | |||
| Height from floor to spindle center | 970 | mm | ||||
| Weight | 1,200 | Kg | ||||
| Control device | FANUC System | |||||
