NUCROBO-8EXRobot-equipped automated CNC lathes
products

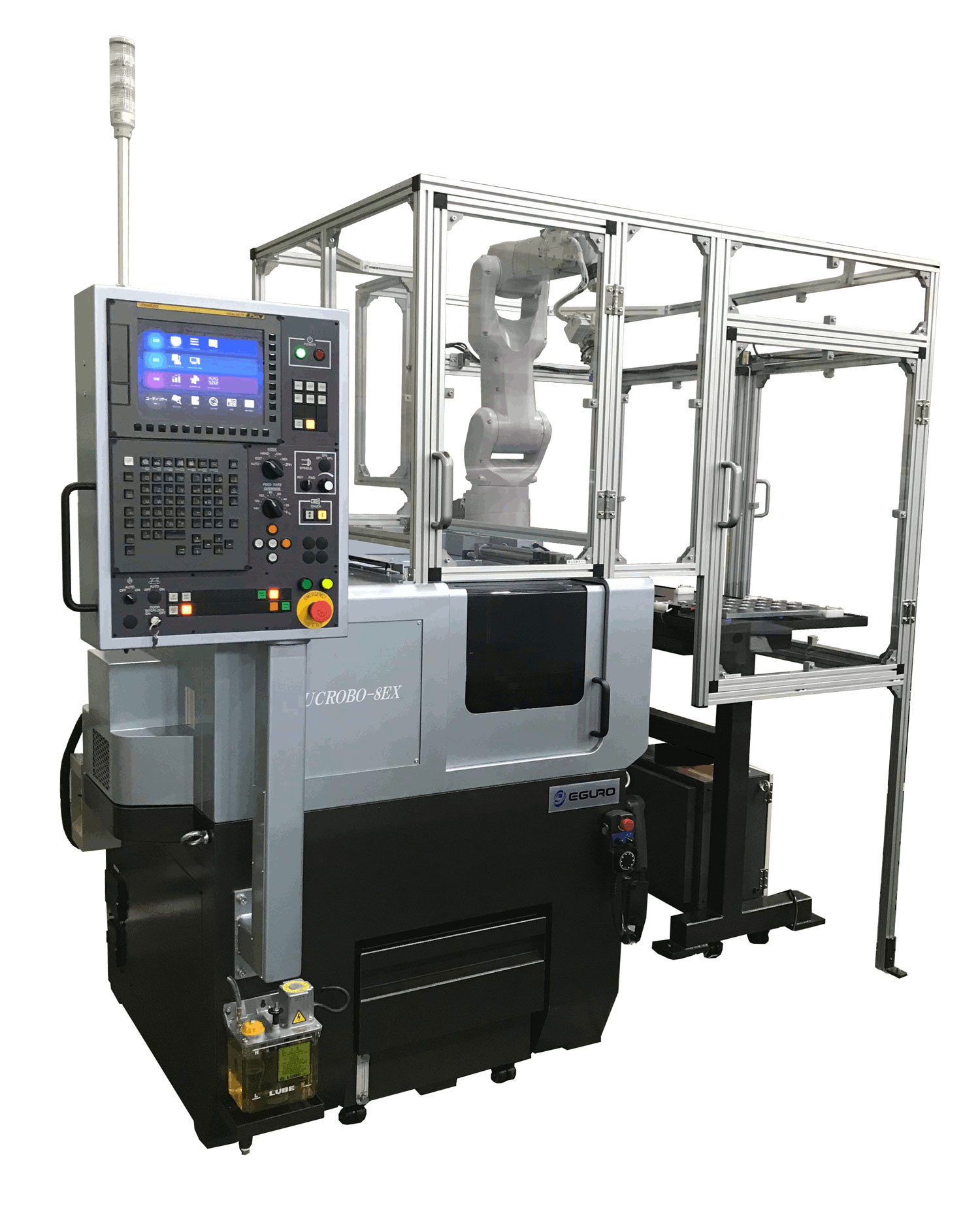

NUCROBO-8EX
Compact EGURO robot system
Smooth transition from general-purpose machinery to automation
- The NUCBOY-8 features a setup ready to be used as-is

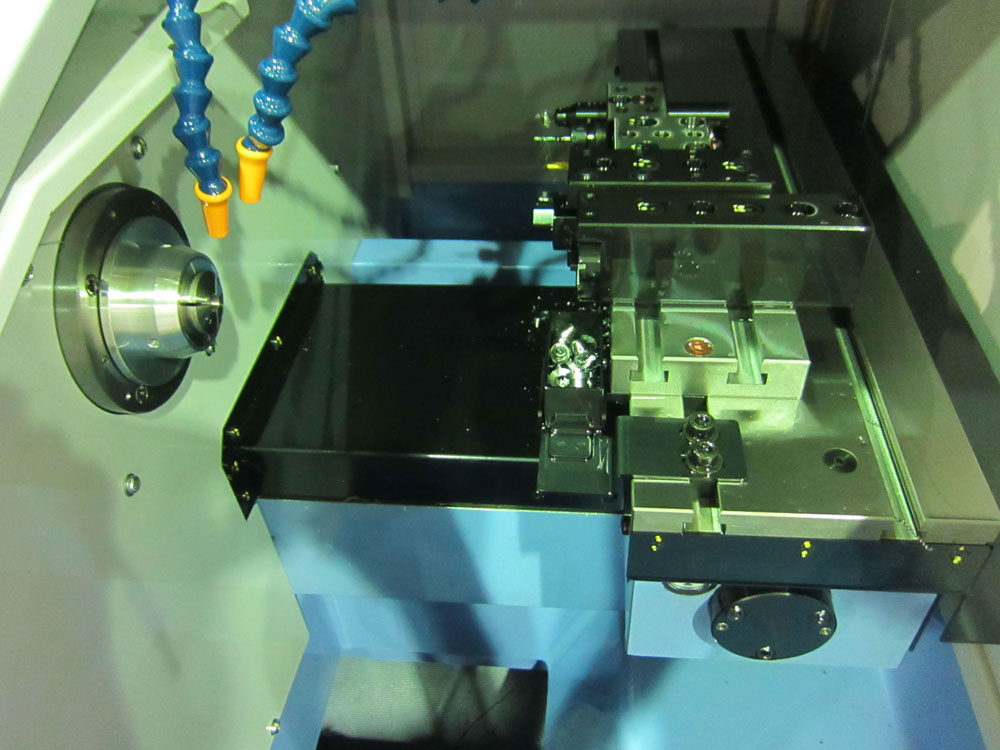

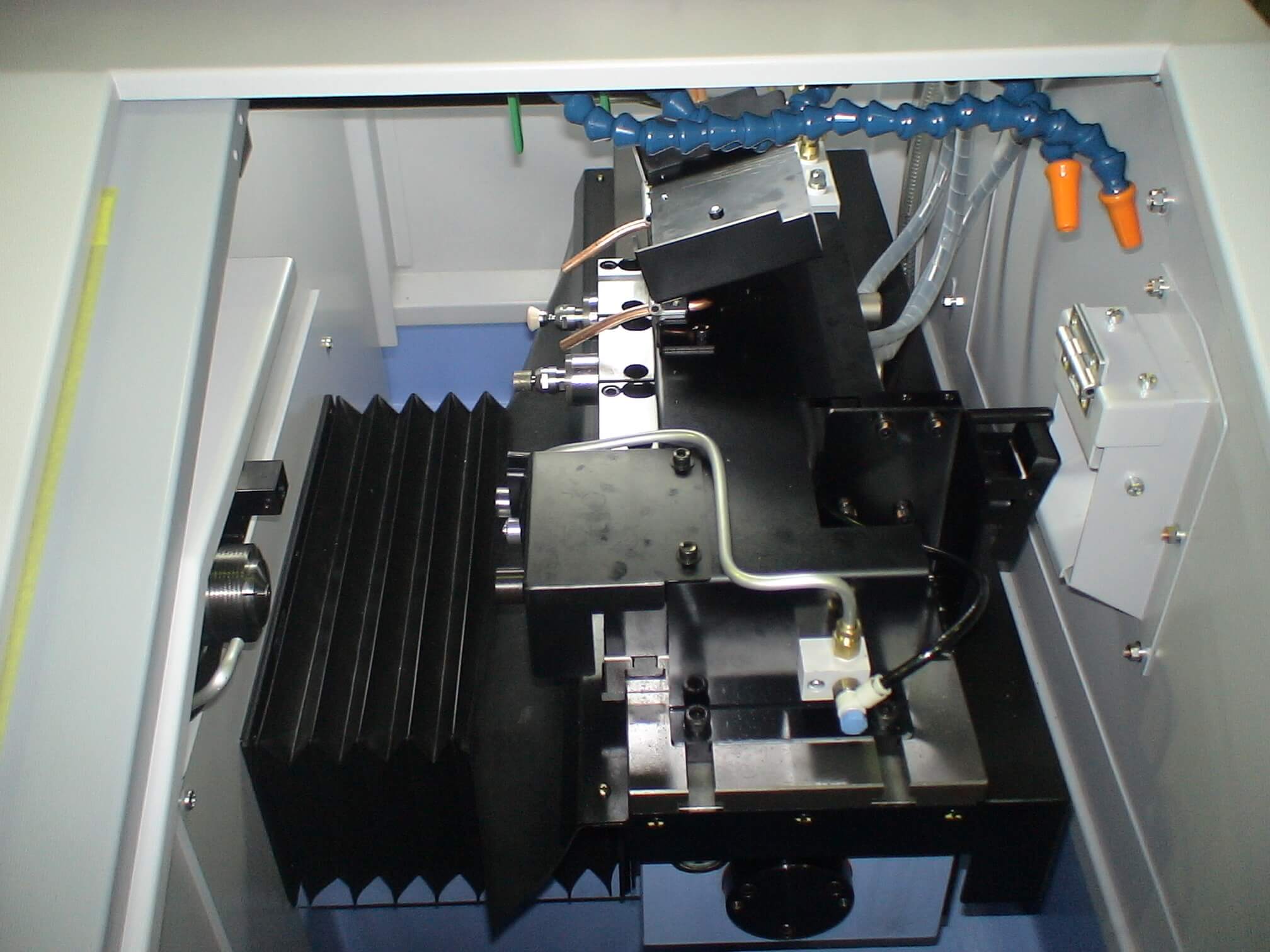

Unique toolpost
- X-axis slide ballscrew adopts oil bath system to maintain stable machining dimensions
Machinery-robot integration ensures restorability and positional accuracy
- The multi-joint robot is fixed to the mechanical leg section to ensure stable precision
- Quick restoration after delivery or relocation
For more information or inquiries about this product, please contact us here.
| Category | NUCROB0-8EX | Unit | |
|---|---|---|---|
| Capacity | ProcessingCapacity | φ50×50 | mm |
| Spindle | Rotation speed conversion ratio | Stepless S4-digit direct command | |
| Rotation speed | Max. 4,500 | min-1 | |
| Spindle nose | EDA-8 collet type | ||
| Cutting table | X-axis travel | 230 | mm |
| Z-axis travel | 250 | mm | |
| X-axis rapid traverse rate | 15 | m/min | |
| Z-axis rapid traverse rate | 15 | m/min | |
| Control method | Semi-closed loop | ||
| Jog feed rater | 0～1,260 | mm/min | |
| Number of tools | Depends on workpiece shape | ||
| Toolpost | Gang-type | ||
| Electric motor | Drive system | Belt drive | |
| Output | AC spindle motor 1.5/2.2 | KW | |
| Toolpost (X-axis) | 0.75 | KW | |
| Toolpost (Z-axis) | 0.75 | KW | |
| Main unit specifications | Power supply | 6.2 | KVA |
| Height from floor to spindle center | 986 | mm | |
| Unit height | 2,050 (Including safety fence) | mm | |
| Required floor space (width × depth) | 2,150×1,500 | mm | |
| Unit weight | 1,200 | Kg | |
| Control device | FANUC System Oi-TF PLUS | ||
Robot-type machinery (with vertical multi-joint robots)
EGURO has been actively engaged in robot-based automation since the 1980s and has built an impressive track record spanning many years.
We offer CNC lathes equipped with vertical multi-joint robots as solutions featuring machinery-robot integration.
Space saving is achieved with this approach to integration as well. We also offer proposals of stocker devices, safety equipment, and more to meet customers’ requirements.
We provide comprehensive support with both hard and soft aspects, including special training on robots and programming/teaching to facilitate the smooth introduction of robots as “co-workers.”
| Model | Rotation speed (rpm) | Stroke X-axis/Z-axis (mm) | Unit dimensions （mm） Width x depth x height | Weight（kg） |
|---|---|---|---|---|
| 6,000 | 270/270 | 1,685ｘ1,570ｘ1,500 *1 | 2,000 *1 | |
| 6,000 | 420/390 | 2,025×1,870×1,645 *1 | 2,200 *1 | |
| 6,000 | 260/300 | 1,675×1,500×1,645 *1 | 1,200 *1 |
