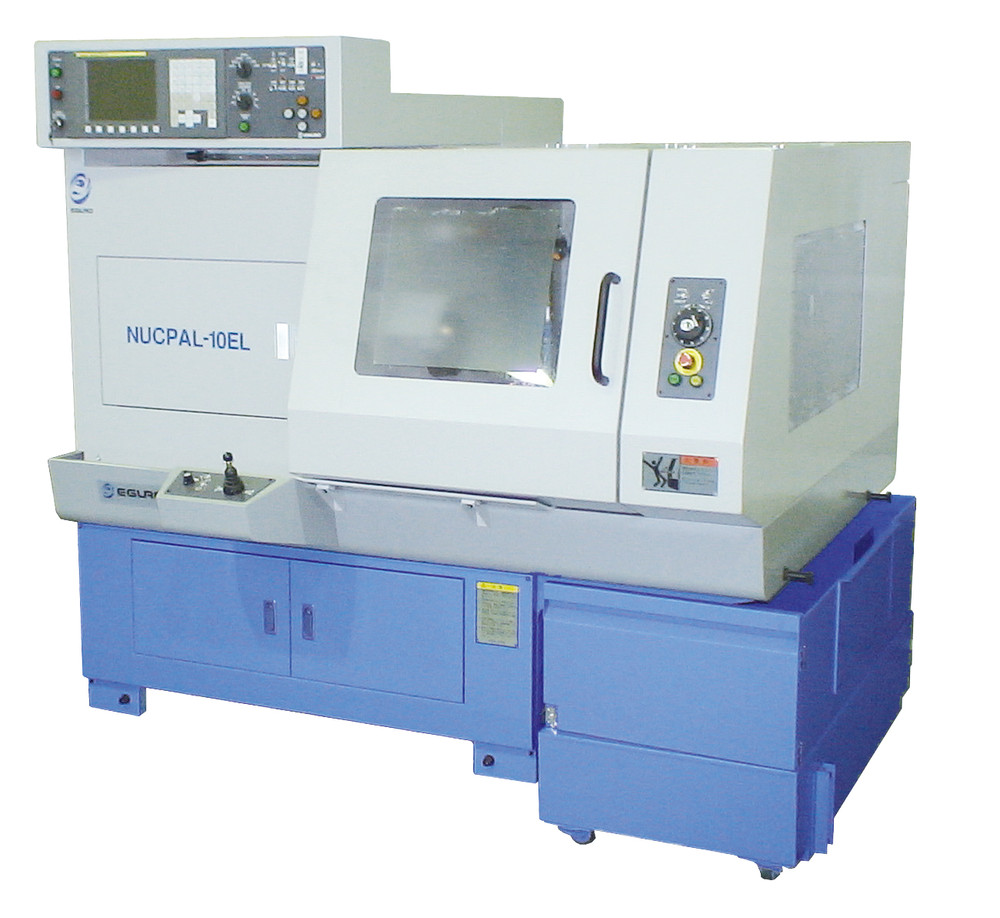

NUCPAL-10（EL/EX）
The EGURO 2-axis CNC lathe with the longest stroke
Reliable precision
- Closed-loop specification with optical scale delivering 0.05-μm resolution on the X-axis
- Stable machining precision at the micrometer (μm) level, even from a cold start
Selectable machining methods

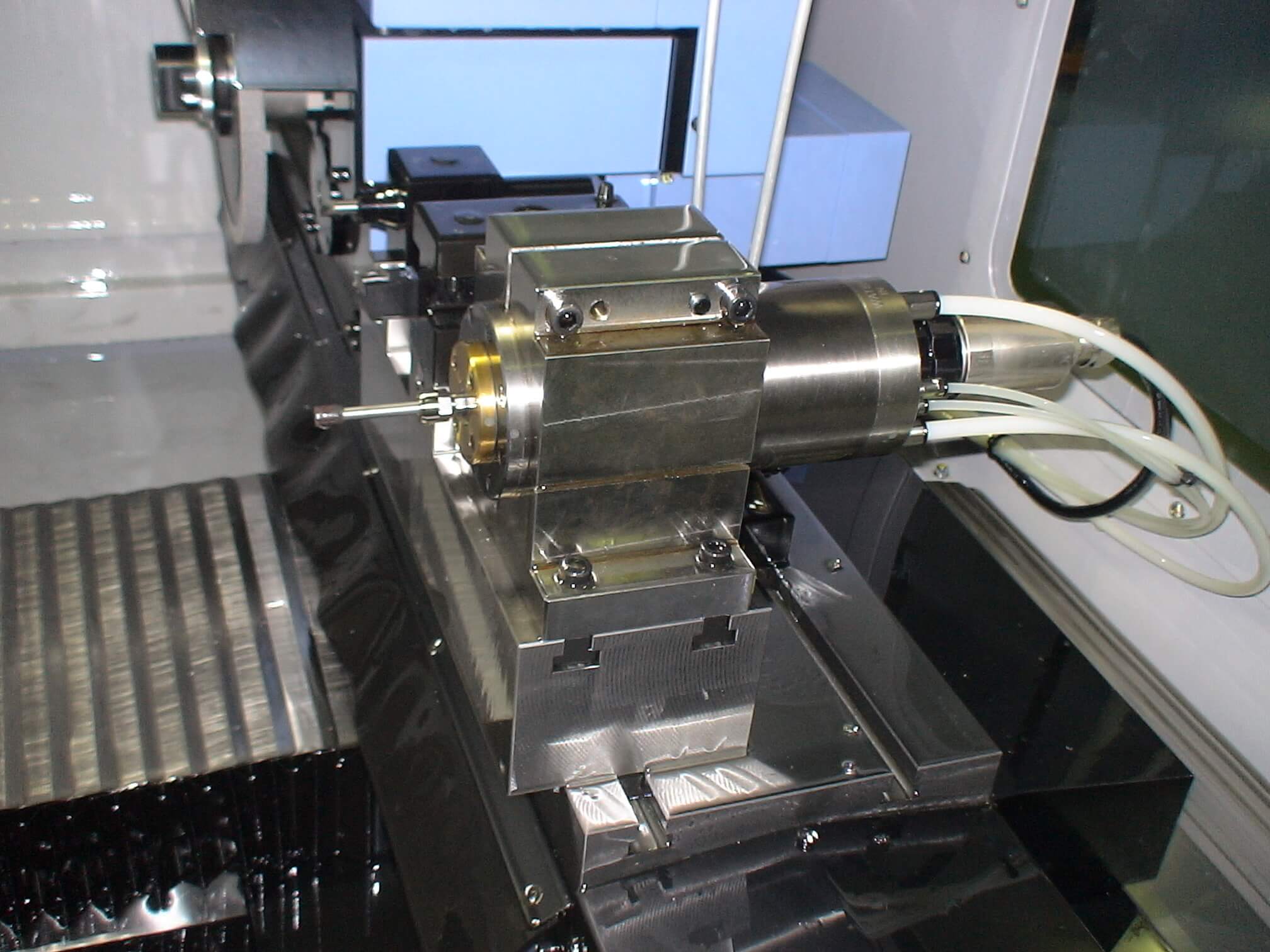

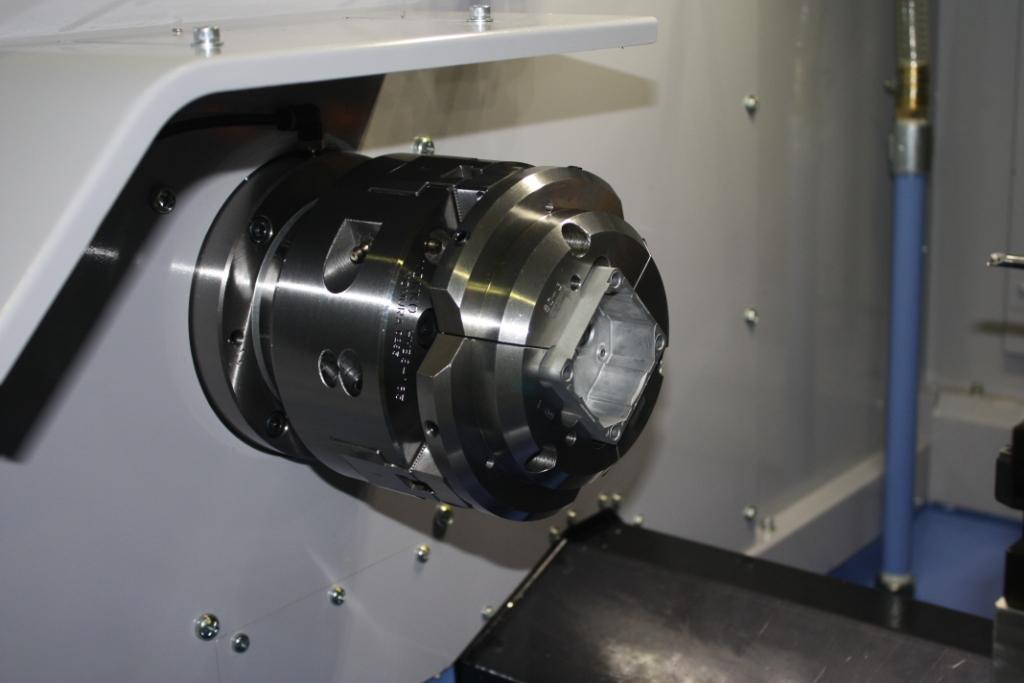

- Extensive options available beyond use as a chucker machine, including as a bar feeder and for compound machining
- Capable of handling a wide range of machining operations
Extensive range of options available
- Wide range of options for stroke size, spindle speed, etc.

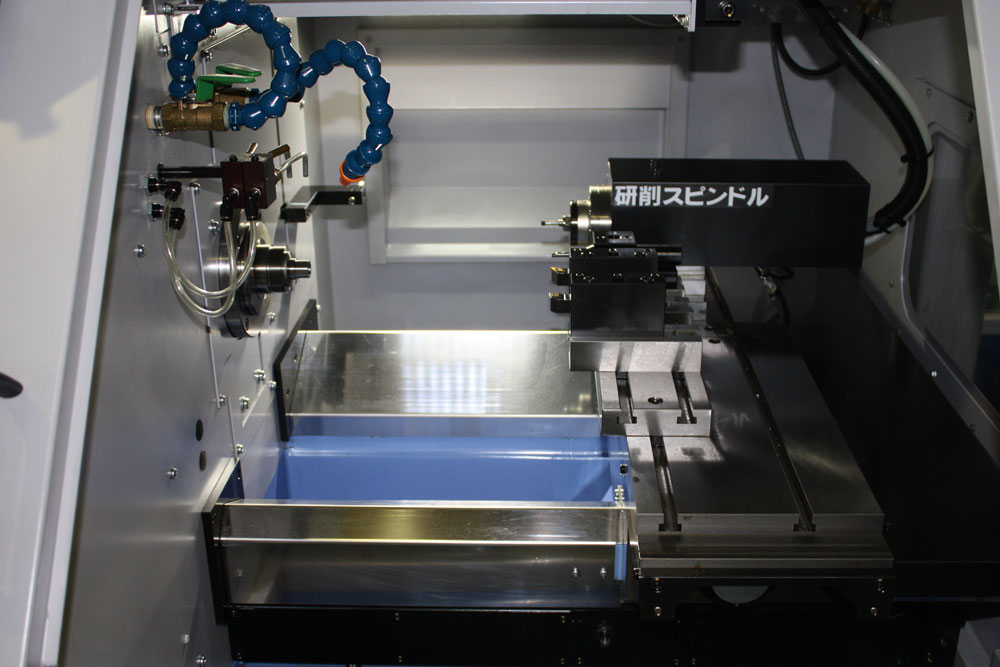

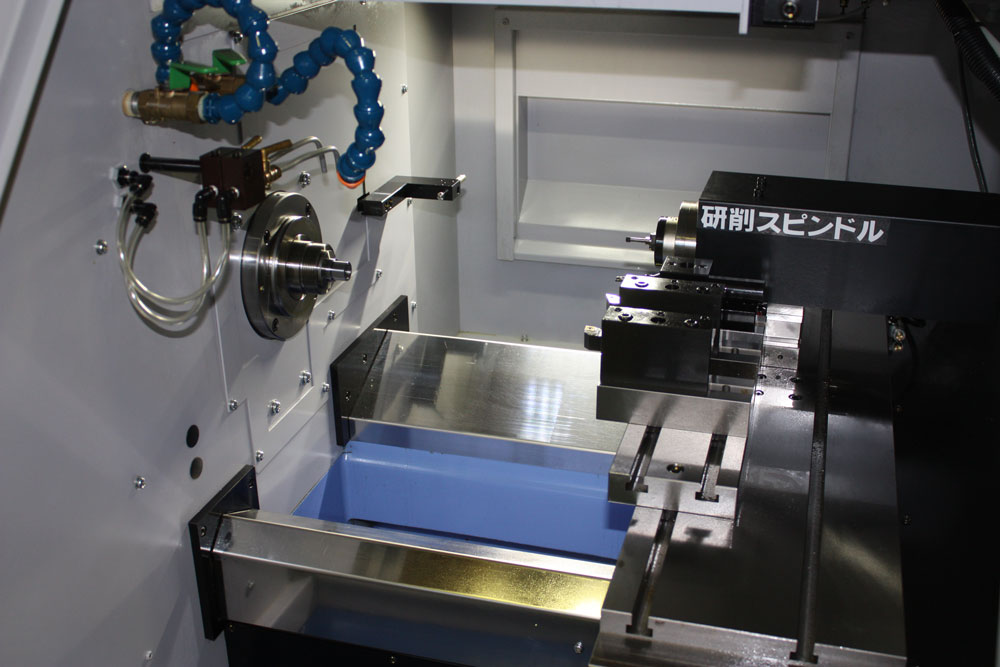

- Extensive specialized options tailored to specific machining applications
For more information or inquiries about this product, please contact us here.
| Category | NUCPAL-10EL | Unit | |
|---|---|---|---|
| Capacity | Swing over bed | 350 | mm |
| Swing over cross slide | 200 | mm | |
| Collet | Type/number | EDA-10 | mm |
| Diameter | 25.5 | mm | |
| Body diameter | 32 | mm | |
| Spindle | Rotation speed conversion ratio | Stepless S4-digit direct command | |
| Rotation speed | Max. 6,000 | min-1 | |
| Cutting table | X-axis travel | 420 (closed-loop) | mm |
| Z-axis travel | 390 | mm | |
| X-axis rapid traverse rate | 15 | m/min | |
| Z-axis rapid traverse rate | 15 | m/min | |
| Jog feed rater | 0～1,260 | mm/min | |
| Number of tools | Depends on workpiece shape | ||
| Spindle motor | Output | ail 3/10,000 AC3.7 | |
| Main unit specifications | Power supply | 12.5(9.4KW) | KVA |
| Height from floor to spindle center | 945 | mm | |
| Unit height | 1,535 | mm | |
| Required floor space (width × depth) | 1,800×1,645 | mm | |
| Unit weight | 2,100 | Kg | |
| Control device | FANUC System Oi-TF | ||
2-axis CNC lathe

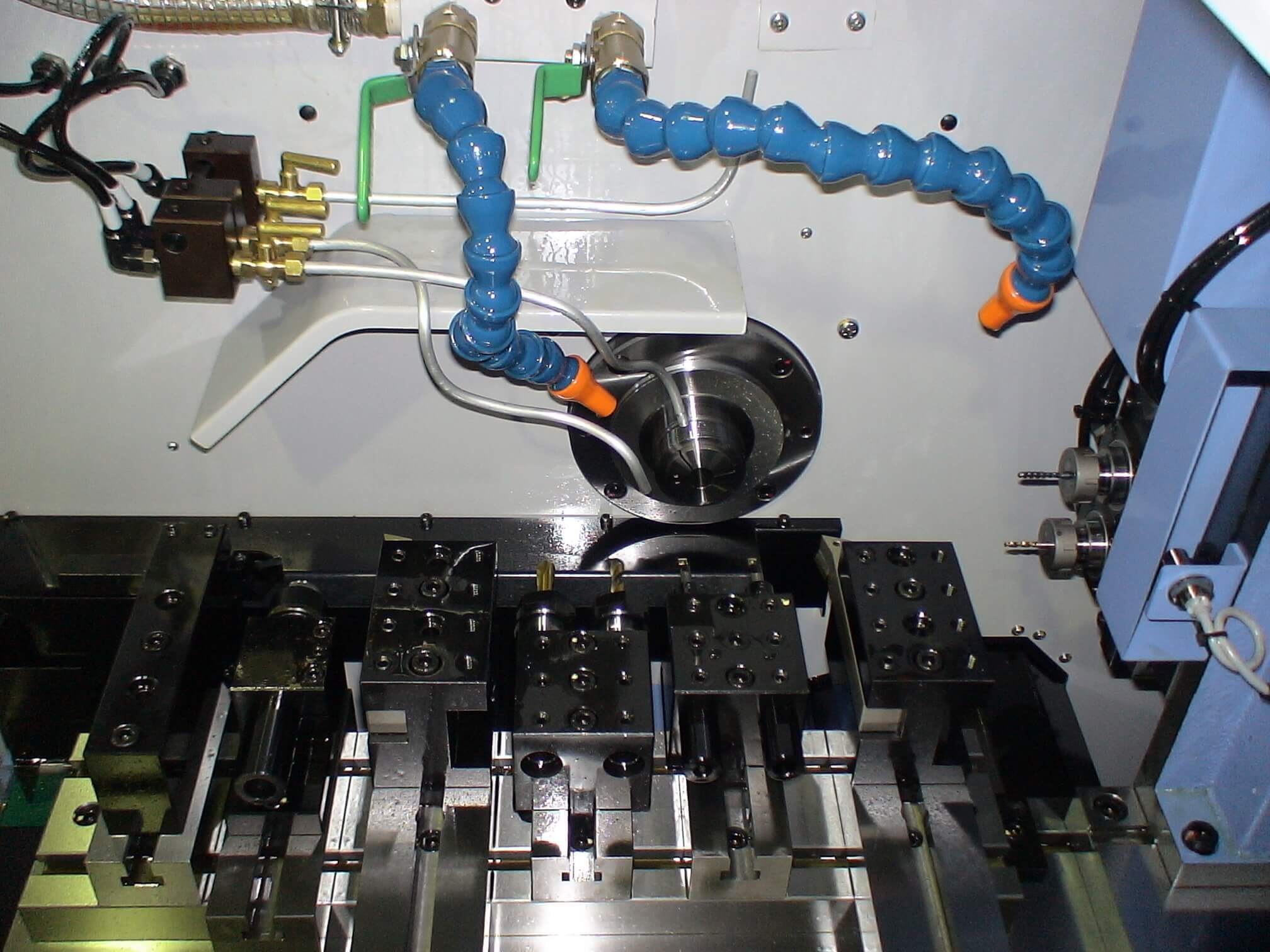

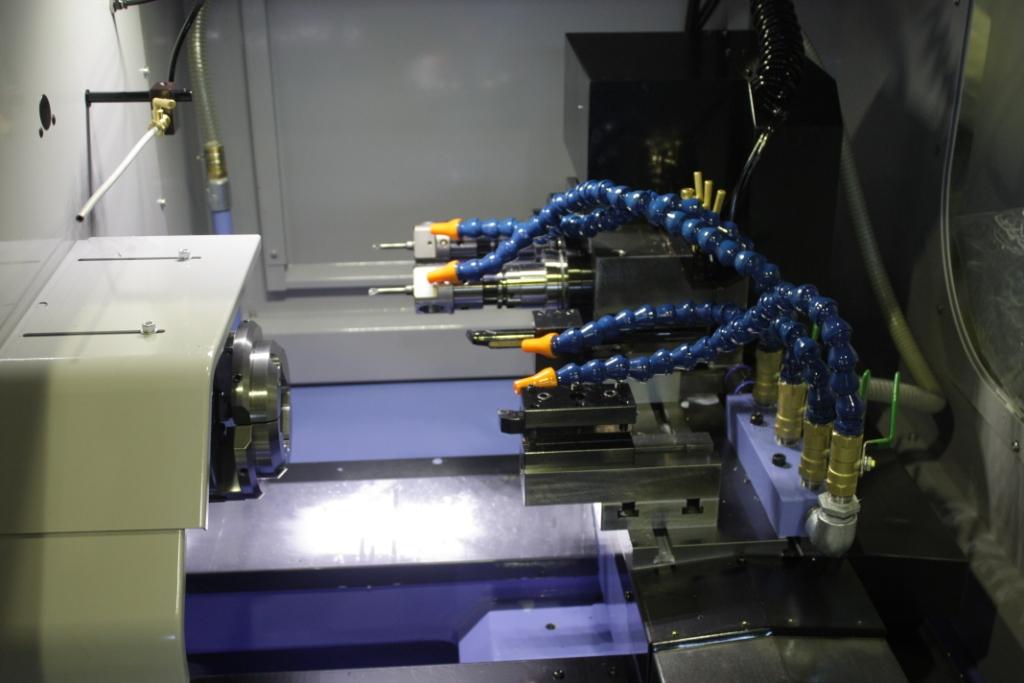

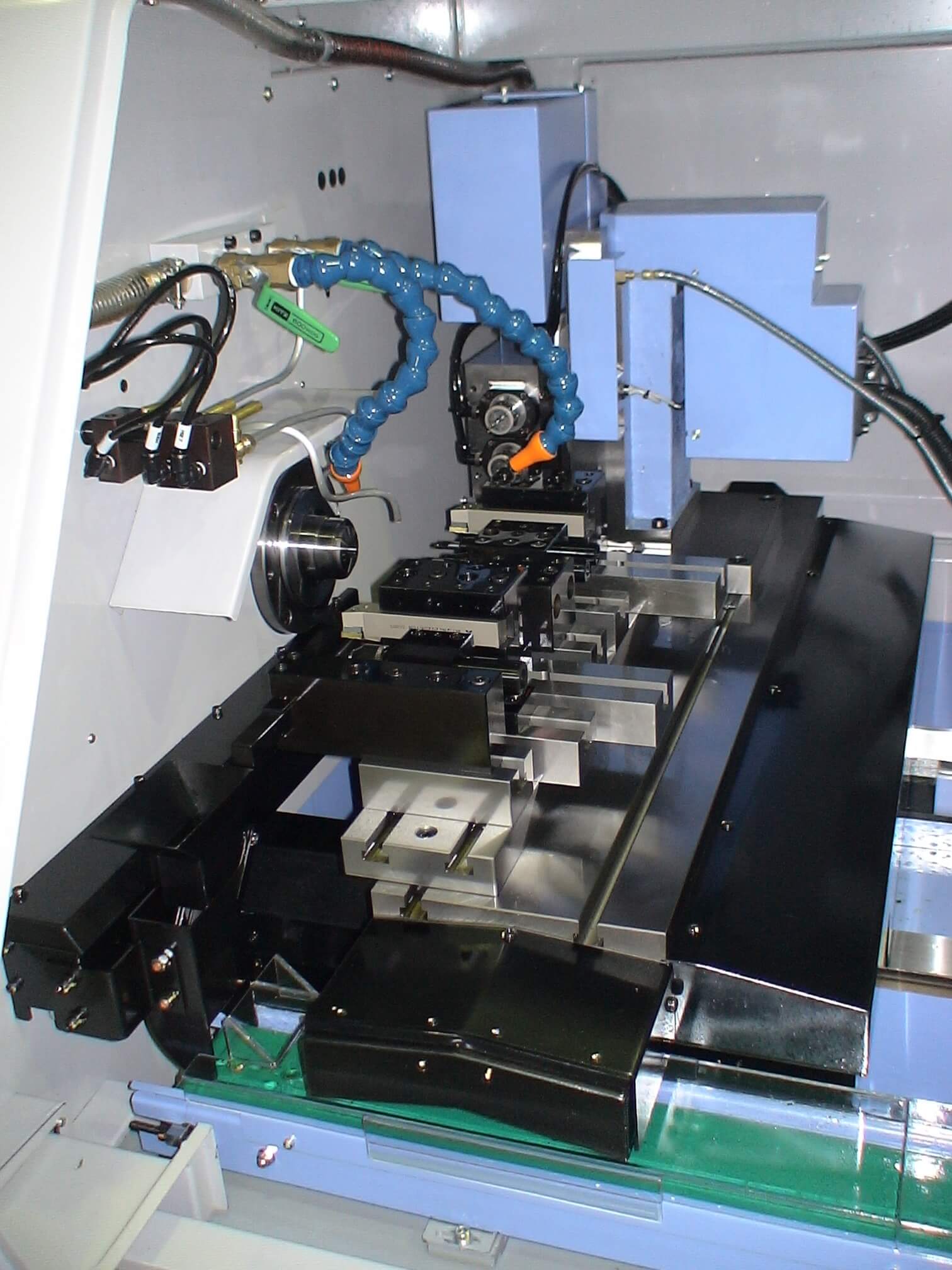

EGURO's 2-axis CNC lathes feature simple structures and compact design. The NC lathes feature gang-type turrets, where cutting tools are lined up on the toolpost like the teeth on a comb, achieving machining with high precision and stability.
| Model | Rotation speed (rpm) | Stroke X-axis/Y-axis/Z-axis (mm) | Unit dimensions（mm） Width x depth x height | Weight （kg） |
|---|---|---|---|---|
| 4,500 | 230/200 | 1,610×1,680×1,820 | 680 | |
| 6,000 | 270/270 | 1,700×1,530×1,500 | 2,100 | |
| 4,000 | 200/150 | 1,380×875×1,610 | 625 | |
| 6,000 | 260/250 | EL : 1,560×1,385×1,645 EX : 1,585×1,360×1,580 | 1,200 | |
| EX : 4,500 EXP : 8,000 | 230/200 | 1,140×1,100×1,460 | 680 |
