NUCBOY-8LL2-axis CNC lathe
products

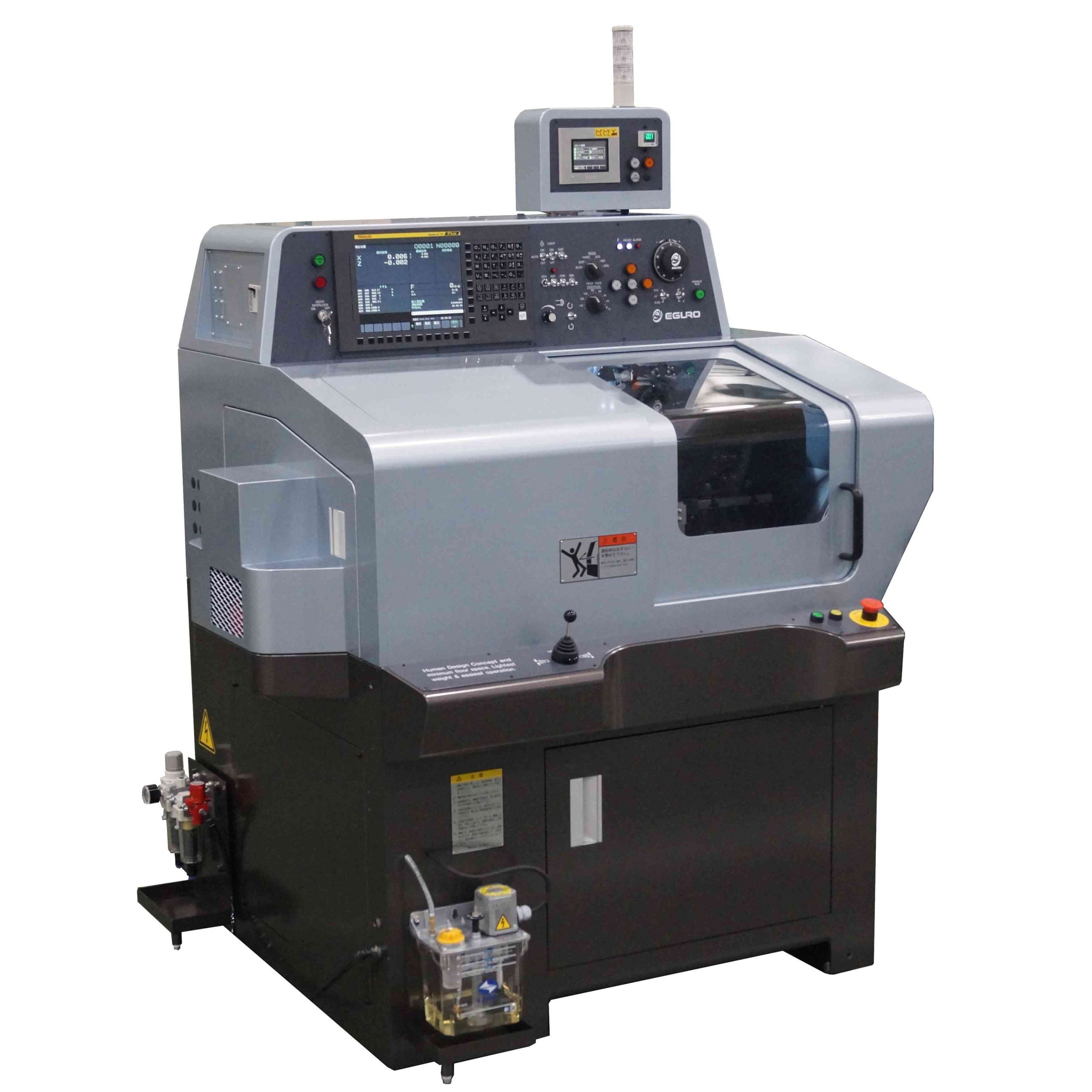

NUCBOY-8LL

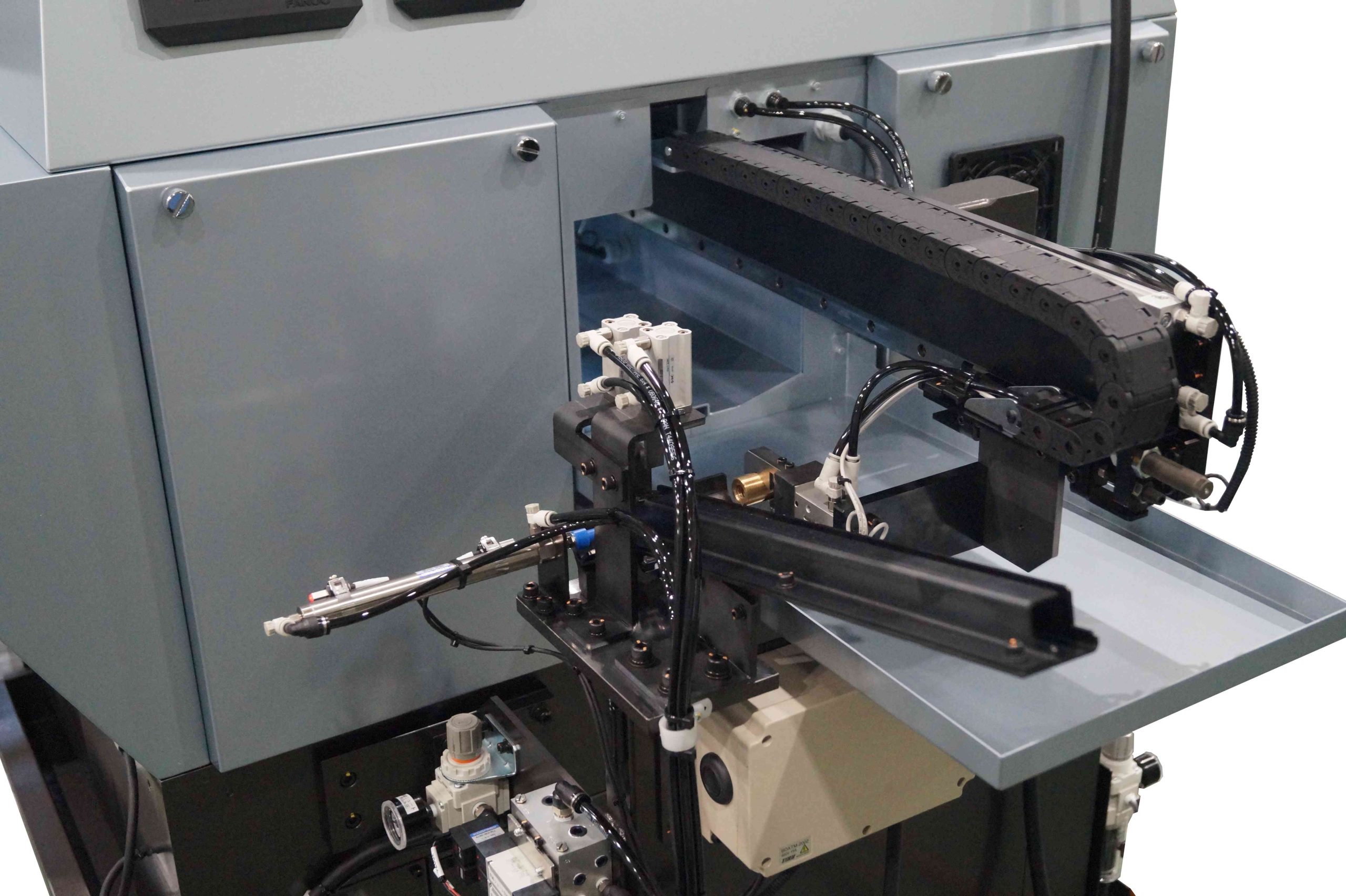

Unmanned cell with simple loader system
Simple automated structure

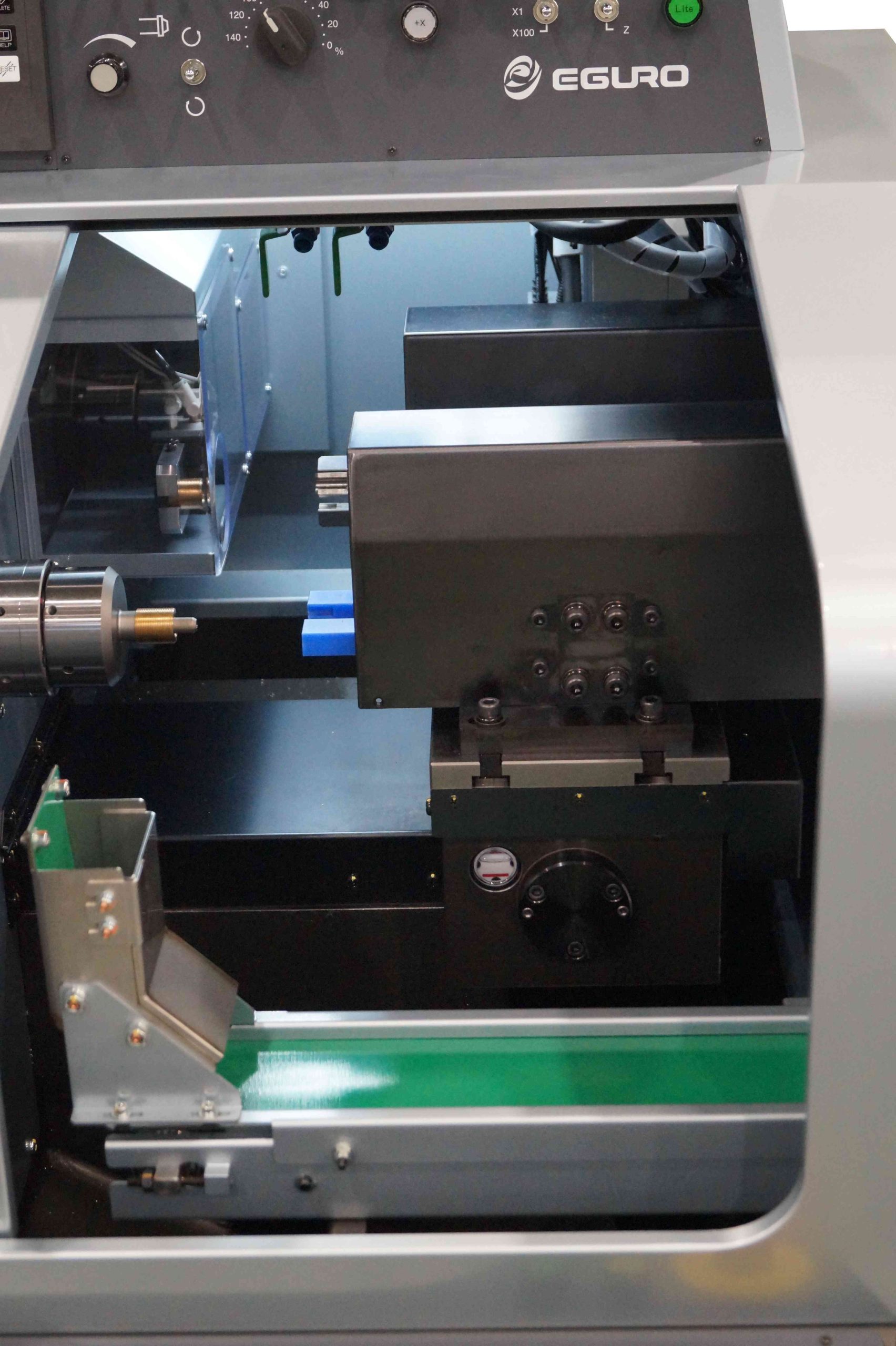

- Low-cost automation with supply/retrieval device mounted on toolpost - possible due to the gang-type configuration
Easy transition between automated and manual operation
- Based on the NUCBOY-8EX precision, compact CNC lathe
- Smooth transition both ways between automated and manual operating modes
For more information or inquiries about this product, please contact us here.
| Model name | NUCBOY-8LL | Unit | |
| Capacity | Maximum machining range | φ50×50 | mm |
| Chuck size | Collet chucks | EDA-8 | |
| Power chuck | 4-inch | ||
| Spindle | Rotation speed conversion ratio | 4,500 | min-1 |
| Output | AC spindle motor 2.2/1.5 | kW | |
| Control device | FANUC System | ||
| Toolpost | Toolpost | Gang-type | |
| Standard tool size | □12 φ20 | mm | |
| X-axis travel | 230 | mm | |
| Z-axis travel | 200 | mm | |
| X-axis rapid feed rate | 15 | m/min | |
| Z-axis rapid feed rate | 15 | m/min | |
| Main unit specifications | Unit height | 1,820 | mm |
| Height from floor to spindle center | 970 | mm | |
| Required floor space (width × depth) | 1,610×1,680 (excluding stocker) | mm | |
| Power supply | 6.2 | kVA | |
| Unit weight | 680 (excluding stocker) | kg | |
2-axis CNC lathe
EGURO's 2-axis CNC lathes feature simple structures and compact design. The NC lathes feature gang-type turrets, where cutting tools are lined up on the toolpost like the teeth on a comb, achieving machining with high precision and stability.
| Model | Rotation speed (rpm) | Stroke X-axis/Y-axis/Z-axis (mm) | Unit dimensions（mm） Width x depth x height | Weight （kg） |
|---|---|---|---|---|
| 6,000 | 270/270 | 1,700×1,530×1,500 | 2,100 | |
| 4,000 | 200/150 | 1,380×875×1,610 | 625 | |
| 6,000 | 420/390 | 1,800×1,645×1,535 | 2,100 | |
| 6,000 | 260/250 | EL : 1,560×1,385×1,645 EX : 1,585×1,360×1,580 | 1,200 | |
| EX : 4,500 EXP : 8,000 | 230/200 | 1,140×1,100×1,460 | 680 |
