NL-10CT2-axis CNC lathe
products
NL-10CT
Successor to the NUCLET-10
Latest, most highly evolved model
- Both X-axis and Z-axis strokes increased to 270 mm
- Leg structure delivering improved rigidity and chip discharge
Positioning precision with stability
- Closed-loop X-axis configuration equipped with 0.05-μm resolution optical scale
- Micrometer-level machining precision with stability, even from cold starts
Extensive range of options available
- Select from various chuck specifications and units to suit workpieces and machining applications
For more information or inquiries about this product, please contact us here.
| Category | NL-10CT | Unit | |
|---|---|---|---|
| Capacity | Maximum machining range | φ80×60 | mm |
| Chuck size | Collet chucks | EDA-10 | |
| Power chuck | 5-inch | ||
| Spindle | Rotation speed | Max. 6,000 | min-1 |
| Output | AC spindle motor 2.2 | kW | |
| Control device | FANUC System | ||
| Toolpost | Toolpost | Gang-type | |
| Standard tool size | □16 | mm | |
| X-axis travel | 270 | mm | |
| Z-axis travel | 270 | mm | |
| X-axis rapid feed rate | 15 | m/min | |
| Z-axis rapid feed rate | 15 | m/min | |
| Main unit specifications | Unit height | 1,500 (1,655 at top of control box) | mm |
| Height from floor to spindle center | 1,035 | mm | |
| Required floor space (width × depth) | 1,700×1,530 | mm | |
| Power supply | 10 | kVA | |
| Unit weight | 2,100 | kg | |
| Automation compatibility | Bar feeder | ○ | |
| Single-arm specifications | ○ | ||
| LL specifications | ○ | ||
| Orthogonal loader specifications | ○ | ||
| Multi-joint robot (on-machine) | ○ (= CT-101) | ||
| ROBO-Station | ○ | ||
2-axis CNC lathe

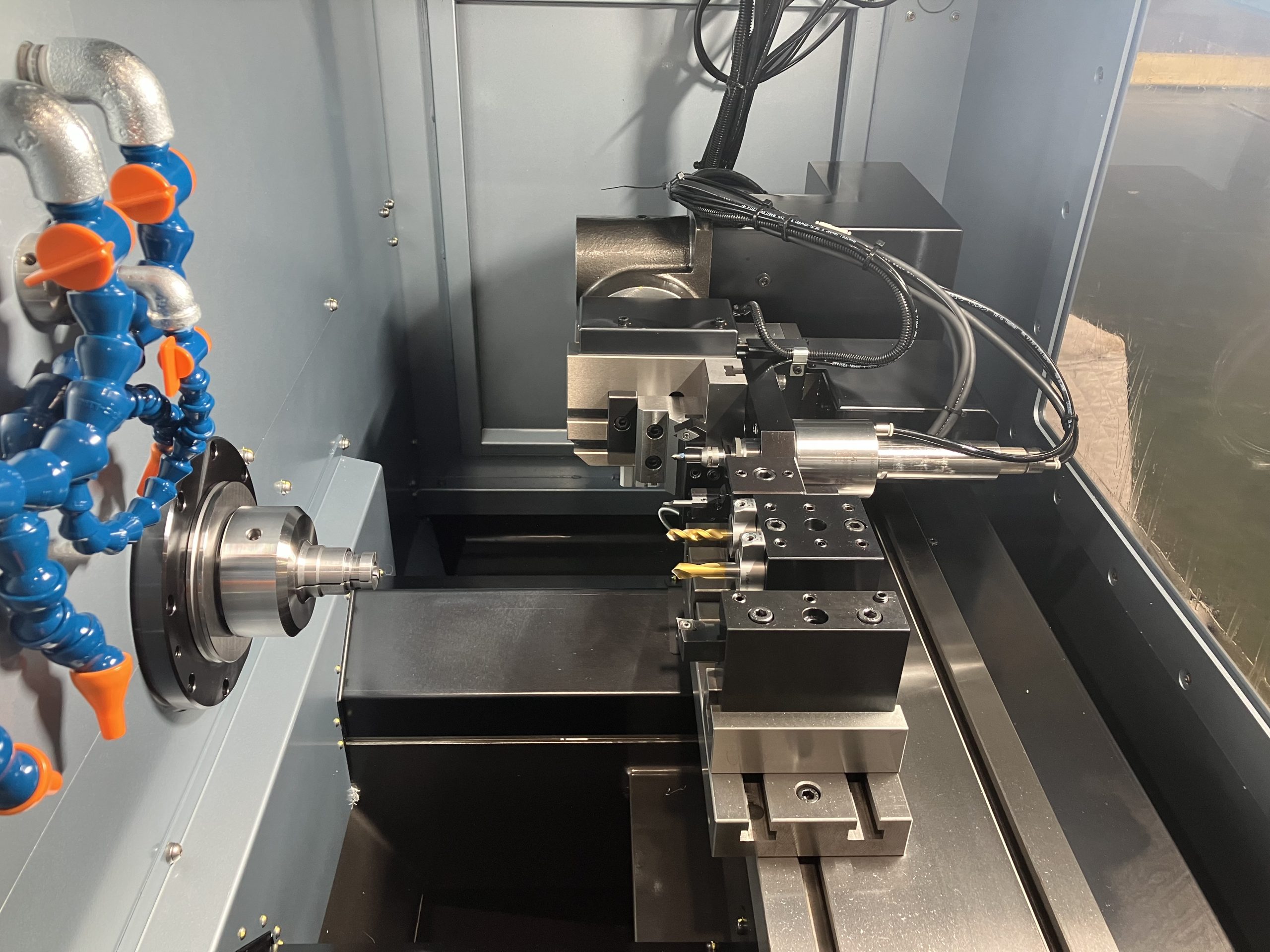

EGURO's 2-axis CNC lathes feature simple structures and compact design. The NC lathes feature gang-type turrets, where cutting tools are lined up on the toolpost like the teeth on a comb, achieving machining with high precision and stability.
| Model | Rotation speed (rpm) | Stroke X-axis/Y-axis/Z-axis (mm) | Unit dimensions（mm） Width x depth x height | Weight （kg） |
|---|---|---|---|---|
| 4,500 | 230/200 | 1,610×1,680×1,820 | 680 | |
| 4,000 | 200/150 | 1,380×875×1,610 | 625 | |
| 6,000 | 420/390 | 1,800×1,645×1,535 | 2,100 | |
| 6,000 | 260/250 | EL : 1,560×1,385×1,645 EX : 1,585×1,360×1,580 | 1,200 | |
| EX : 4,500 EXP : 8,000 | 230/200 | 1,140×1,100×1,460 | 680 |
