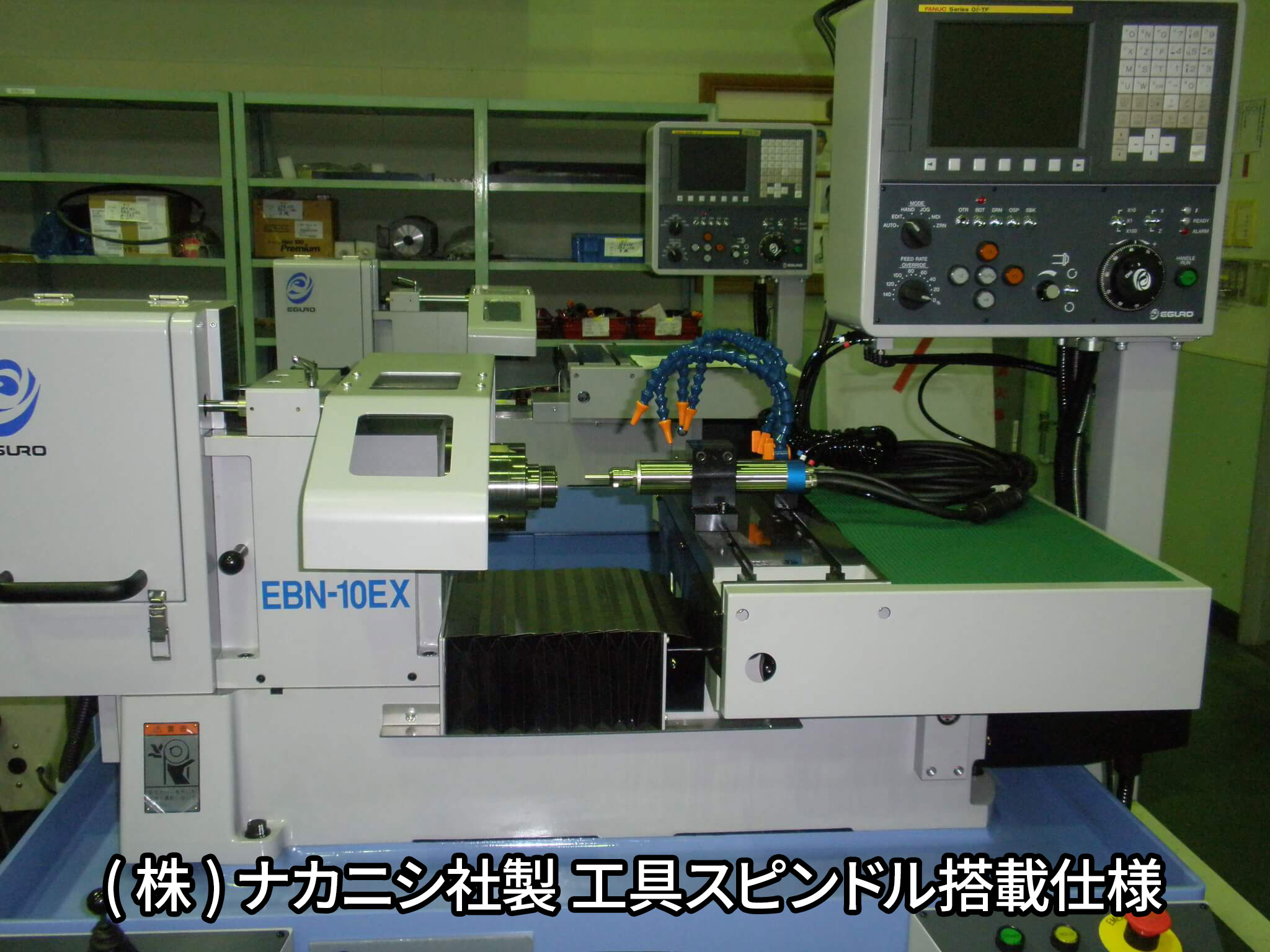

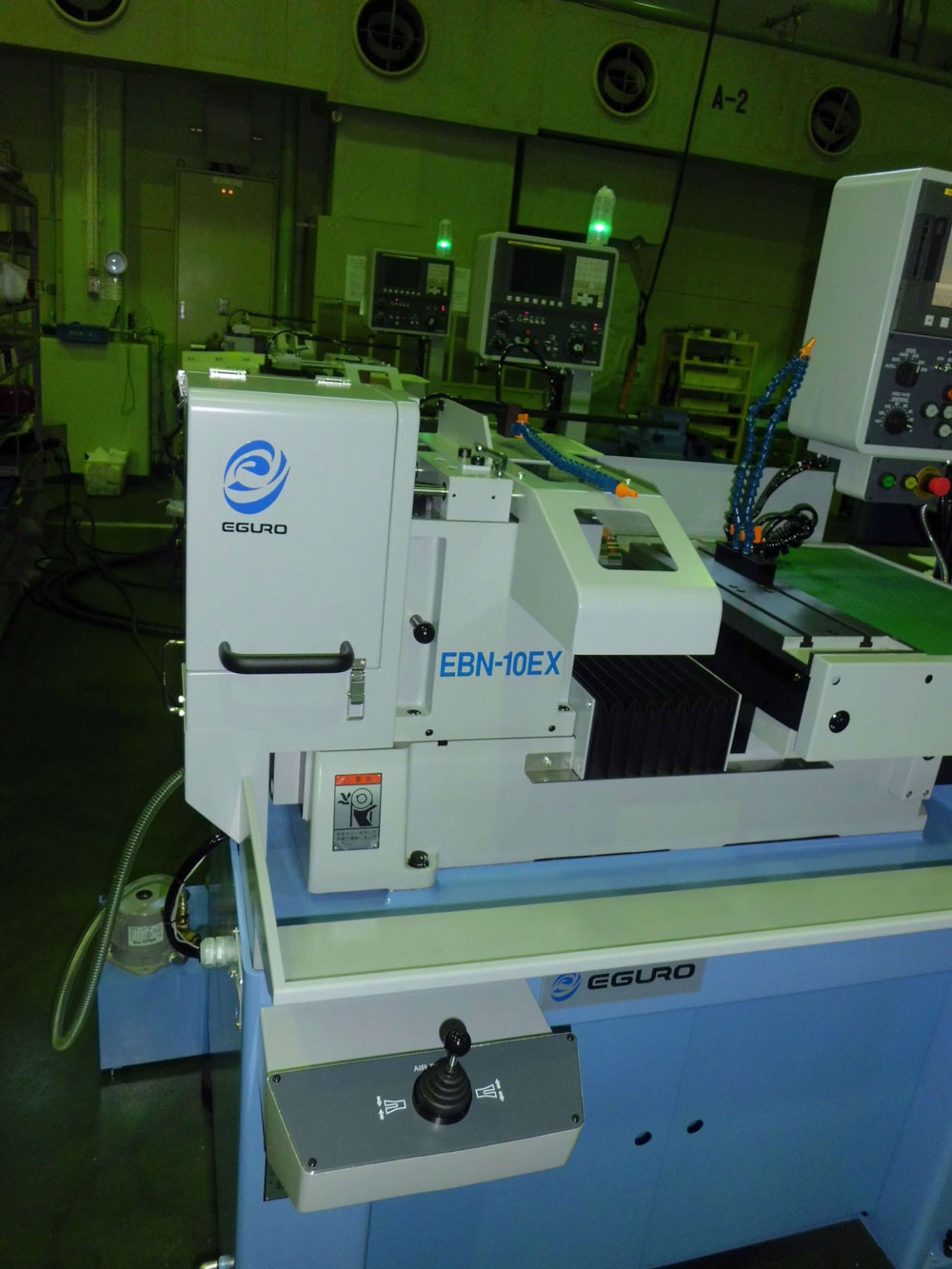

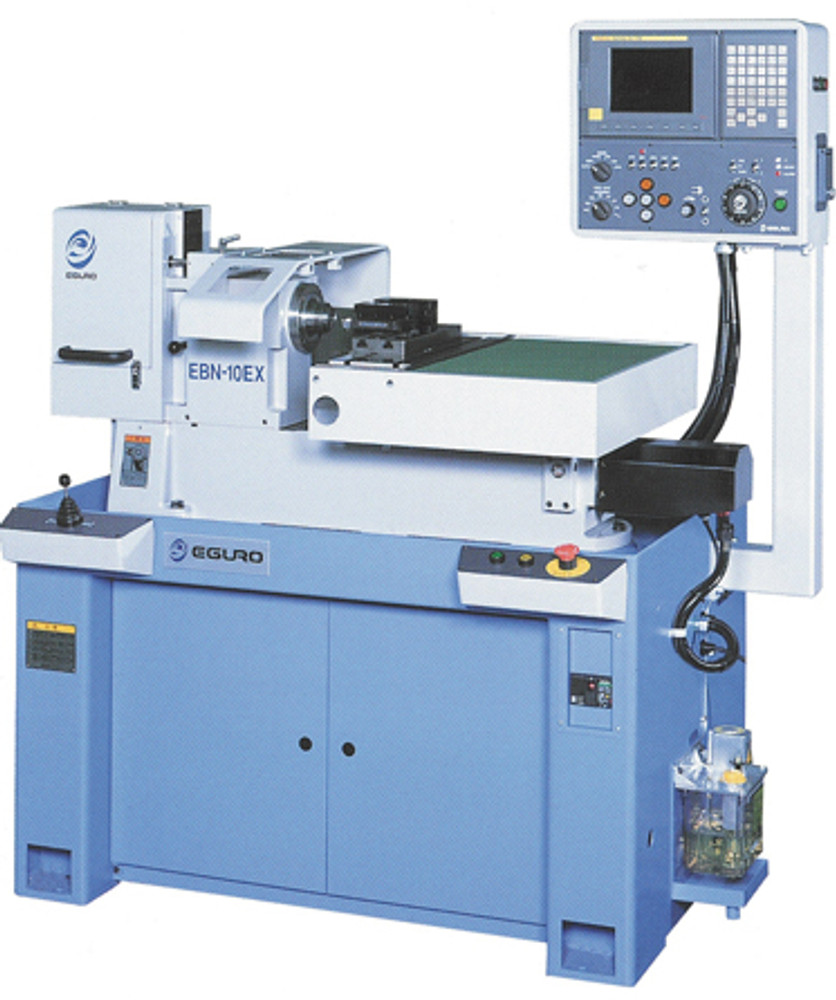

EBN-10EX2-axis CNC lathe
products
EBN-10EX
Incorporating NC on a general-purpose/program-controlled lathe
Optionally employable as general-purpose lathe

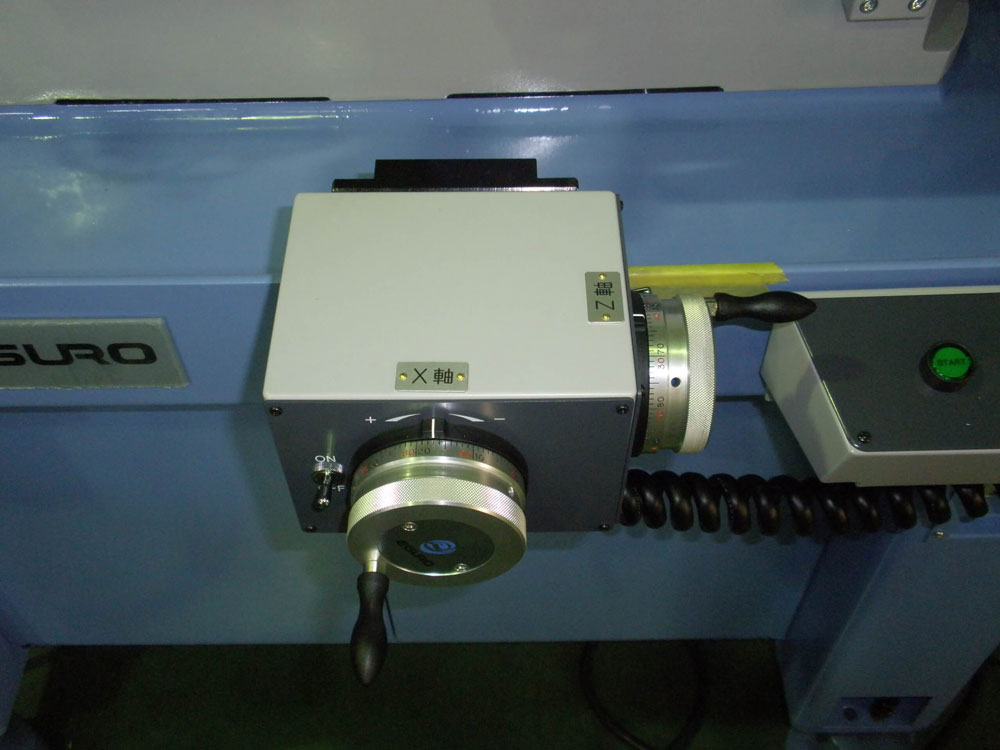

- Features include a manual 2-axis handle and square toolpost
- While being NC machinery, can be used like a general-purpose lathe as well

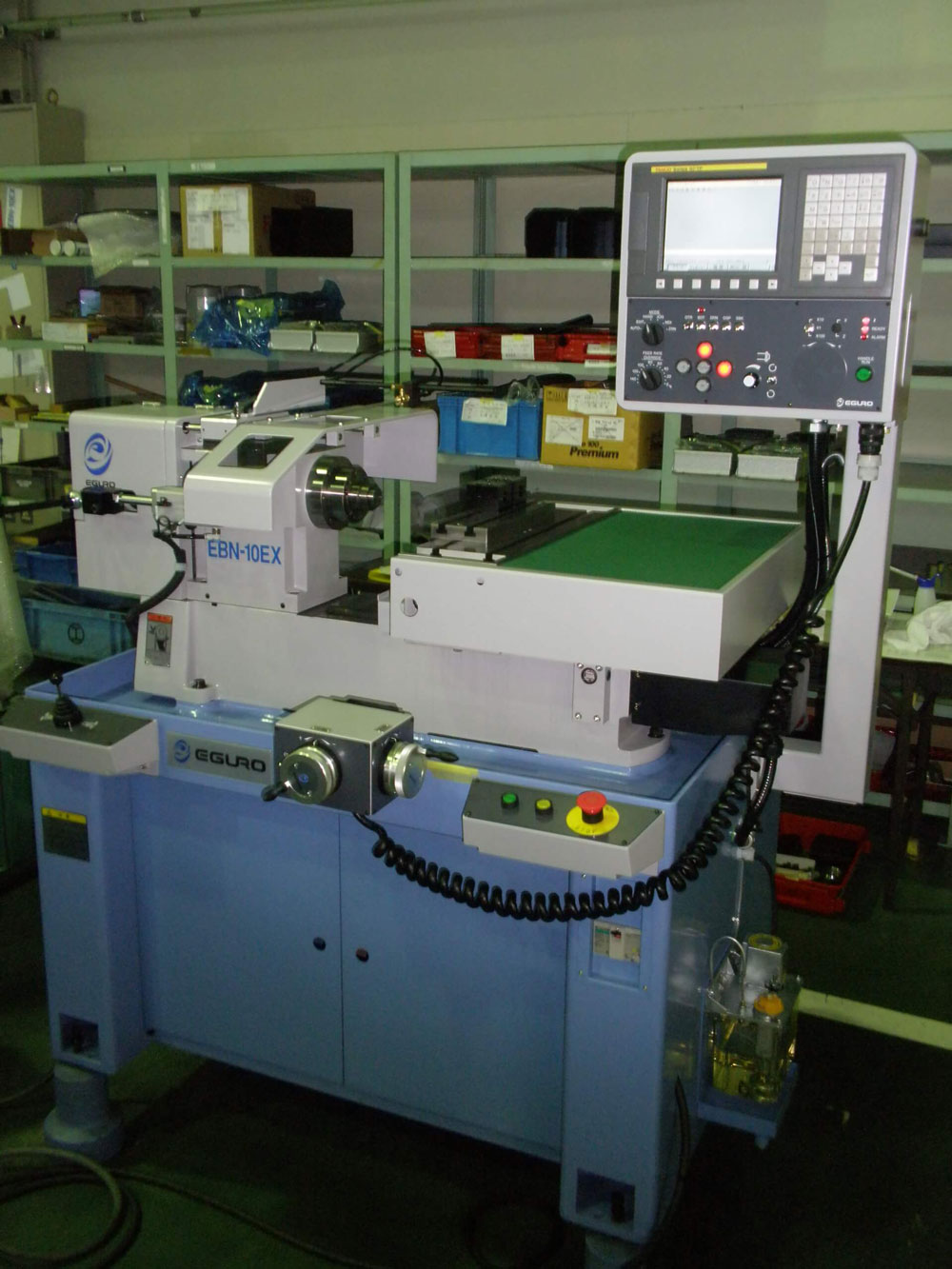

HANDLE RUN LITE function
- Reproduce the trajectory of the created NC program using manual pulse operation
- A reassuring feature that allows even NC beginners to confirm operations intuitively
Compact design
- Compact design with a footprint of only 0.9 m², with a reduced machining stroke for easy conversion from bench lathes and program-controlled units.
- Space-saving design offers greater flexibility for machine customization.
For more information or inquiries about this product, please contact us here.
| Category | EBN-10EX | Unit | |
|---|---|---|---|
| Capacity | Maximum machining range (diameter × length) | φ50 /50 | mm |
| Swing over bed | 360 | mm | |
| Swing over cross slide | 100 | mm | |
| Swing over toolpost mount | 50 | mm | |
| Spindle | Rotation speed conversion ratio | Stepless S4-digit direct command | |
| Rotation speed | Max. 4,000 | min-1 | |
| Spindle nose | EDA-10 | ||
| Collet diameter | 25.5 | mm | |
| Toolpost | X-axis travel | 200 | mm |
| Z-axis travel | 150 | mm | |
| X-axis rapid traverse rate | 12 | m/min | |
| Z-axis rapid traverse rate | 12 | m/min | |
| Jog feed rater | 0～1,260 | mm/min | |
| Number of tools | Depends on workpiece shape | ||

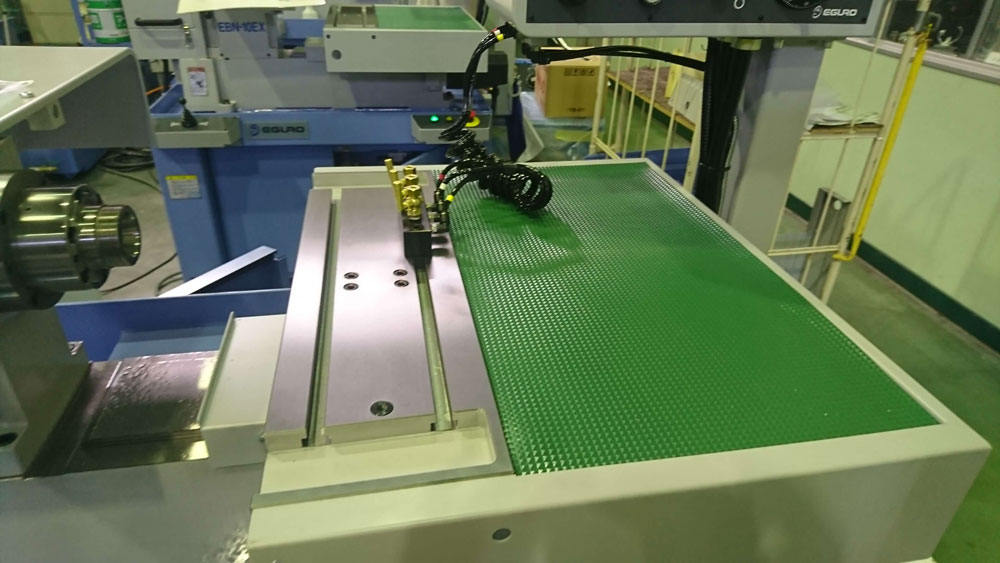

| Type | Gang-type, fixed | ||
| Electric motor | For spindle | 1.5 inverter | KW |
| For toolpost (X-axis) | FANUC β is 2/4,000-B 0.5 | ||
| For toolpost (Z-axis) | FANUC β is 2/4,000-B 0.5 | ||
| Main unit specifications | Power supply | 6.0 (3.4KW) | KVA |
| Height from floor to spindle center | 1,050 | mm | |
| Unit height | 1,610 | mm | |
| Required floor space (width × depth) | 1,380×875 | mm | |
| Unit weight | 625 | Kg | |
2-axis CNC lathe
EGURO's 2-axis CNC lathes feature simple structures and compact design. The NC lathes feature gang-type turrets, where cutting tools are lined up on the toolpost like the teeth on a comb, achieving machining with high precision and stability.
| Model | Rotation speed (rpm) | Stroke X-axis/Y-axis/Z-axis (mm) | Unit dimensions（mm） Width x depth x height | Weight （kg） |
|---|---|---|---|---|
| 4,500 | 230/200 | 1,610×1,680×1,820 | 680 | |
| 6,000 | 270/270 | 1,700×1,530×1,500 | 2,100 | |
| 6,000 | 420/390 | 1,800×1,645×1,535 | 2,100 | |
| 6,000 | 260/250 | EL : 1,560×1,385×1,645 EX : 1,585×1,360×1,580 | 1,200 | |
| EX : 4,500 EXP : 8,000 | 230/200 | 1,140×1,100×1,460 | 680 |
