CT-101
Successor to the NUCROBO-101:
Robot-mounted, automated CNC lathe offering greater flexibility
Positioning precision with stability
- Closed-loop control with optical scale on the X-axis
- Longer stroke than the previous model as a standard machine
Compact design with freedom of movement
- Automation specifications enabling selection of vertical multi-joint robot configurations
- Highly flexible machine structure to meet the diverse needs of production sites
Extensive automation options
- Diverse automation specifications offered, based on extensive experience with the NUCROBO series and other equipment
- Automation of post-machining processes other than turning, using vertical multi-joint robots
For more information or inquiries about this product, please contact us here.
| Model name | CT-101 | Unit | |
|---|---|---|---|
| Capacity | Maximum machining range (diameter × length) | φ80×60 | mm |
| Chuck size | Collet chucks | EDA-10 | |
| Power chuck | 5-inch | ||
| Spindle | Rotation speed | 6,000 | min-1 |
| Output | AC spindle motor 2.2 | KW | |
| Control device | FANUC System | ||
| Toolpost | Toolpost | Gang-type | |
| Standard tool size | □16 | mm | |
| X-axis travel | 270 | mm | |
| Z-axis travel | 270 | mm | |
| X-axis rapid feed rate | 15 | m/min | |
| Z-axis rapid feed rate | 15 | m/min | |
| Main unit specifications | Unit height | 2,000 | mm |
| Height from floor to spindle center | 915 | mm | |
| Required floor space (width × depth) | 1,685ｘ1,570 | mm | |
| Power supply | 10 | KVA | |
| Unit weight | 2,000 | kg | |
| Automation compatibility | Bar feeder | 〇 | |
| Single-arm specifications | - | ||
| LL specifications | - | ||
| Orthogonal loader specifications | - | ||
| Multi-joint robot (on-machine) | Standard | ||
| ROBO-Station | 〇 | ||
Robot-type machinery (with vertical multi-joint robots)
EGURO has been actively engaged in robot-based automation since the 1980s and has built an impressive track record spanning many years.
We offer CNC lathes equipped with vertical multi-joint robots as solutions featuring machinery-robot integration.

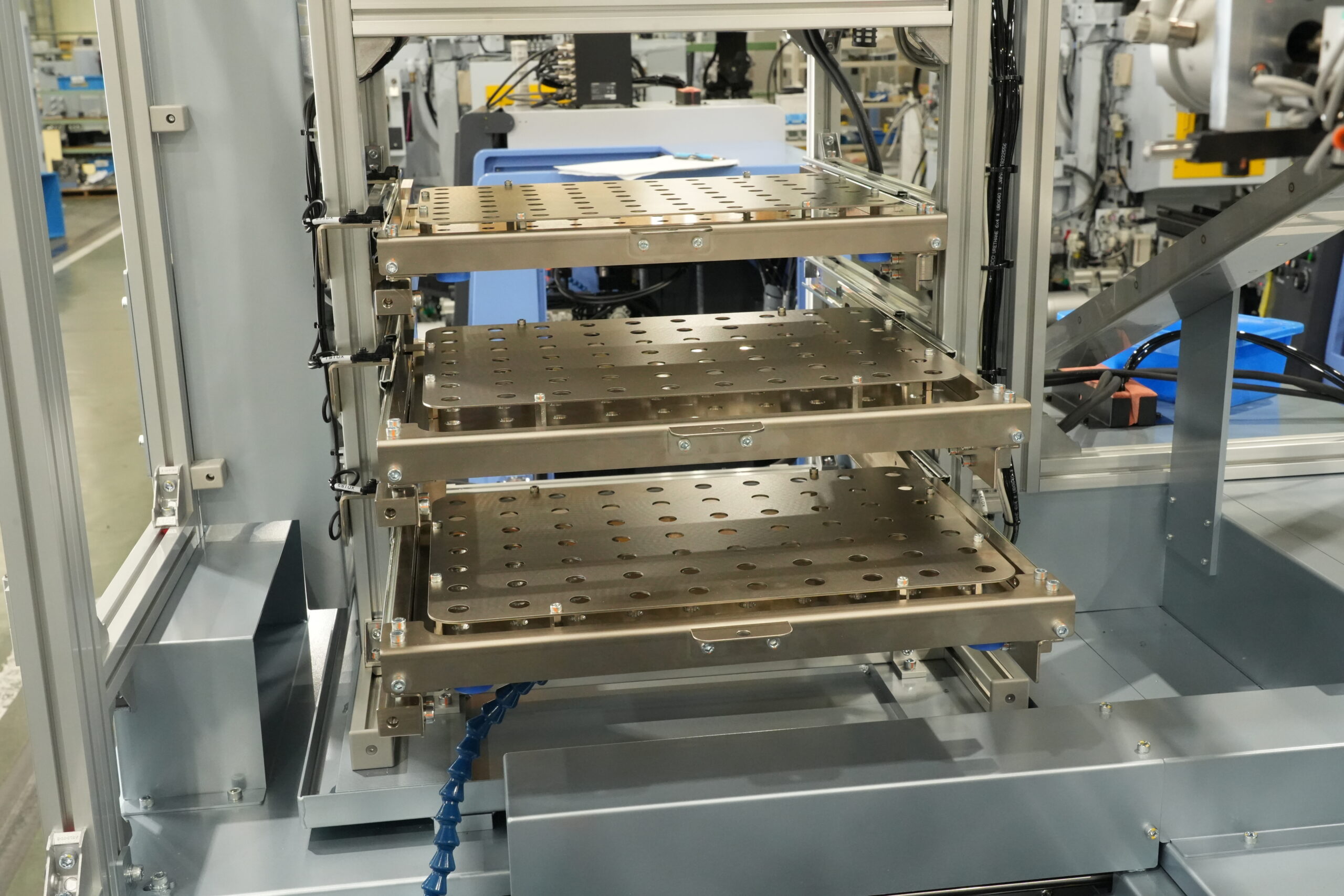

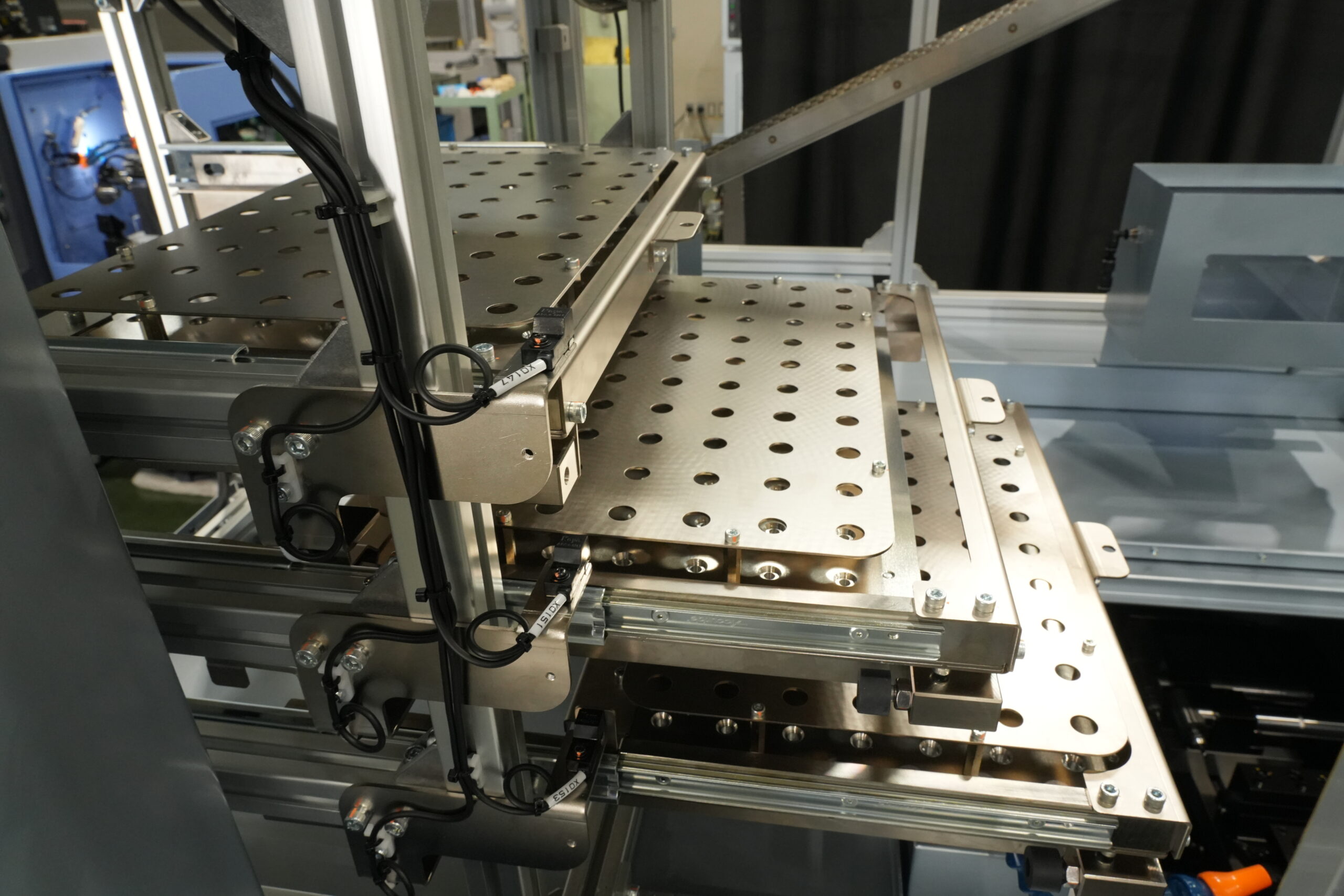

Space saving is achieved with this approach to integration as well. We also offer proposals of stocker devices, safety equipment, and more to meet customers’ requirements.
We provide comprehensive support with both hard and soft aspects, including special training on robots and programming/teaching to facilitate the smooth introduction of robots as “co-workers.”
| Model | Rotation speed (rpm) | Stroke X-axis/Z-axis (mm) | Unit dimensions （mm） Width x depth x height | Weight（kg） |
|---|---|---|---|---|
| 6,000 | 420/390 | 2,025×1,870×1,645 *1 | 2,200 *1 | |
| 6,000 | 260/300 | 1,675×1,500×1,645 *1 | 1,200 *1 | |
| 4,500 | 230/250 | 2,150×1,500×2,050 | 1,200 |
